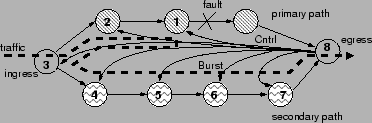

Figure 5:
Parallel OBS activation architecture.
|
In the serial OBS activation architecture, route setup signaling messages
flow serially starting at the node upstream to the failure and along the
re-routed alternate path. However, this signaling scheme can be further
improved by combining it with the parallel activation architecture
introduced in [4].
Figure 5 illustrates our proposed scheme. In
this hybrid signaling scheme, the egress node, multicasts
separate OBS control packets to all the nodes on the alternate path over
the DCN in parallel. Real internetworks are organized as transit-stub
hierarchical structures [11]. As a result, the hop
distance between a pair of nodes in an internetwork such as the DCN does
not grow linearly with the geographical distance between them. Hence,
the largest hop distance that an OBS control packet is required to travel
before the data burst can be transmitted will always be smaller
in case of the parallel OBS scheme than in the serial
OBS activation architecture. This is reflected in the way
is estimated for the serial and parallel architectures. For this scheme
and remain same as in Eqn. (12)
and Eqn. (13).

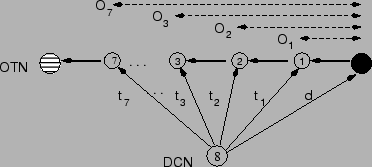

Figure 6:
Calculating for parallel OBS-based activation.
|
From Figure 5, following an argument similar to the one in the
previous section, we arrive at the same7expression for as Eqn. (15):
|
(16) |
We now describe the experiments carried out in order
to compare the performance of the four schemes discussed above.
