Try to use nettest to measure round

Experiment on Oct 10

Try to use nettest to measure round-trip time and throughput

Dublin is running kernel 2.4.10 with tulip driver compiled as module
Use the default infrastructure

All the experiment are experiment 2

1. PingPong test

pingserver [port [interface]]

where
port is the port number the server is to listen on (default or 0
value means let the system choose a port).
Value must be a positive integer.
interface is the interface the server is to listen on (default or 0 value means all interfaces on this node).
Value must be an IP address in dotted decimal notation or
a DNS name.

pingclient port [interface [iterations [size]]]

where
port is the port number on which the server is listening (required).
interface is the interface to use to get to the server (default is
the DNS name of the node on which the client is running).
iterations is the number of messages the client is to send to the server
(default is 100).
size is the number of bytes in each message (default is 1, maximum is 1,000,000).

What does the result data mean?

server immediately sends back whatever it receives from client.
On each iteration step, client sends size Byte data and waits to receive that piece of data.

The elapse time is the iterations times of sending and receiving size Byte data on client side.

The actual data sent from the NIC is a little more than iterations*size Byte because of the TCP header, IP header, Ethernet frame wrapping

So the actual throughput should be a little more than the number we get here.

PingPong Test on Experiment 2
Tested Size byte	Iteration Times	*Elapse Time for iteration times* ( second )**							average RTT ( us )
Tested Size byte	Iteration Times	1st	2nd	3rd	4th	5th	AVG	Variation	average RTT ( us )
1	100000	14.19	14.18	14.12	14.23	14.14	14.172	0.034	141.72
2	100000	14.20	14.15	14.16	14.16	14.19	14.172	0.018	141.72
4	100000	14.30	14.28	14.25	14.27	14.26	14.272	0.014	142.72
8	100000	14.37	14.35	14.36	14.37	14.41	14.372	0.015	143.72
16	100000	14.69	14.73	14.70	14.71	14.72	14.71	0.012	147.10
32	100000	15.28	15.26	15.29	15.25	15.26	15.268	0.014	152.68
64	100000	19.63	19.62	19.60	19.61	19.60	19.612	0.010	196.12
128	100000	21.54	21.55	21.52	21.53	21.56	21.54	0.012	215.40
256	100000	25.82	25.81	25.79	25.82	25.80	25.808	0.010	258.08
512	100000	34.41	34.37	34.36	34.36	34.38	34.376	0.015	343.76
1024	100000	51.38	51.38	51.37	51.37	51.39	51.378	0.006	513.78
2048	1000	11.57	10.02	10.02	10.02	10.02	10.33	0.496	1033.00
3072	10000	11.28	11.27	11.27	11.27	11.26	11.27	0.004	1127.00
4096	10000	11.02	11.02	11.05	11.02	11.01	11.024	0.010	1102.40
5120	10000	12.91	12.90	12.91	12.91	12.91	12.908	0.003	1290.80
6144	10000	20.26	22.20	20.18	20.65	22.41	21.14	0.932	2114.00
7168	10000	16.04	16.04	16.04	16.04	16.04	16.04	0.000	1604.00
8192	10000	17.79	17.78	17.83	17.78	17.79	17.794	0.014	1779.40
9216	10000	33.27	34.50	34.54	33.07	33.17	33.71	0.648	3371.00
10240	1000	10.04	10.04	10.02	10.03	10.04	10.034	0.007	10034.00
16384	1000	12.43	10.01	10.02	10.02	10.02	10.5000	0.772	10500.00
32768	1000	5.97	5.97	5.96	5.97	5.97	5.968	0.003	5968.00
65536	1000	16.79	18.32	25.92	16.10	19.73	19.372	2.762	19372.00
98304	1000	17.21	17.15	17.14	17.14	17.14	17.156	0.022	17156.00
131072	1000	22.73	22.72	22.72	22.72	22.72	22.722	0.003	22722.00

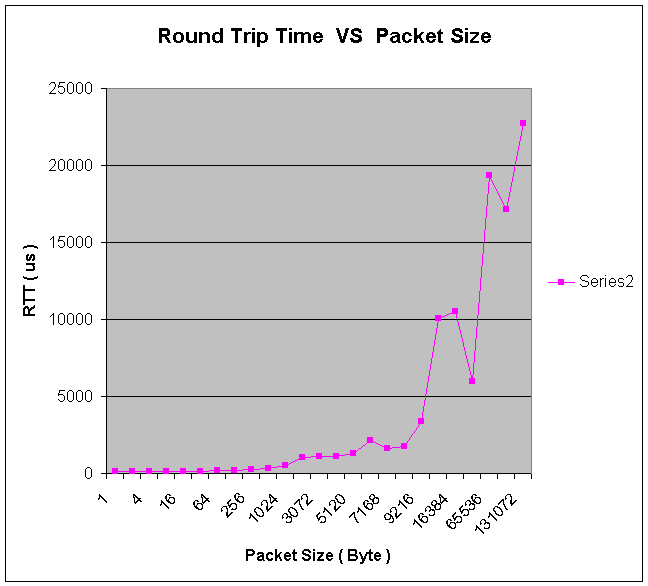

My explanation on the Round Trip Time Variation

There are a few obvious "jump" in the RTT when request size grows up.
When request size is small, there only one TCP packet==>one IP packet ==>one Ethernet frame involved in the communication. So the RTT is almost the same. It equals to the time to send one Ethernet frame. We can see that from the first significant jump when request size = 2048. The RTT almost 2 times as that when request size is 1024. We know that the maximum Ethernet Frame size is 1526 Byte( 1500 for data, 26 for Ethernet wrapper).
The second obvious jump happens when request size is 9K and 10K.See the data table above, but Why????
The third significant jump happens when request size is 64K.
It's pretty interesting that:

When request size is 32KByte, the RTT is much less than it was when request size is 16KB or 64KB

When request size is 64KByte, The RTT is not that stable as other cases. RTT fluctuates.

Re-do the experiments on request size 32K bytes and 64K bytes

Re-Test Round Trip Time when request size is 32KB and 64KB
Request Size ( KB)	Elapse Time for 1000 iteration times															AVG(sec)	Var	RTT(us)
Request Size ( KB)	1st	2nd	3rd	4th	5th	6th	7th	8th	9th	10th	11th	12th	13th	14th	15th	AVG(sec)	Var	RTT(us)
32	5.97	5.98	5.97	5.97	5.97	5.97	5.97	5.97	5.97	5.97	5.97	5.97	5.97	5.97	5.96	5.97	0.001333	5970
64	17.31	19.94	15.60	31.26	33.24	20.00	17.10	17.40	20.02	15.33	15.31	19.62	16.29	16.15	20.00	19.638	3.550933	19638

The result of running tcpdump on Dublin shows that

The fluctuation of round trip time is NOT because of "TCP packet retransmitting", See experiments here

2. Blast Test

For the blast test, the number of iterations times the message size all divided by the elapsed time gives the throughput rate in bytes per second.

blastserver [port [interface]]
where
port is the port number the server is to listen on (default or 0
value means let the system choose a port).
Value must be a positive integer.
interface is the interface the server is to listen on (default or 0 value
means all interfaces on this node).
Value must be an IP address in dotted decimal notation or
a DNS name.

blastclient port [interface [iterations [size]]]
where
port is the port number on which the server is listening (required).
interface is the interface to use to get to the server (default is
the DNS name of the node on which the client is running).
iterations is the number of messages the client is to send to the server
(default is 100).
size is the number of bytes in each message (default is 1, maximum
is 1,000,000).

What does the result data mean?

server swallow whatever it receives until finally it sends 1 byte to finish the connection

Here client don't read back the data it sent. So the throughput we get here should be a little higher than ping-pong test.

The actual data sent from the NIC is a little more than iterations*size Byte because of the TCP header, IP header, Ethernet frame wrapping

So the actual throughput should be a little more than the number we get here.

Blast Test on Experiment 2
Tested Size byte	LOG(Size)	Iteration Times	*Elapse Time for iteration times* ( second )**							Throughput （Byte/Sec)
Tested Size byte	LOG(Size)	Iteration Times	1st	2nd	3rd	4th	5th	AVG	Variation	Throughput （Byte/Sec)
1	0	1000000	1.70	1.69	1.69	1.69	1.69	1.692	0.003	591016.59
2	1	1000000	1.64	1.64	1.64	1.64	1.64	1.64	0.000	1219512.20
4	2	1000000	1.43	1.43	1.44	1.44	1.43	1.434	0.005	2789400.28
8	3	1000000	1.62	1.63	1.62	1.62	1.61	1.62	0.004	4938271.61
16	4	1000000	1.92	1.93	1.90	1.92	1.91	1.916	0.009	8350730.69
32	5	1000000	2.87	2.88	2.87	2.87	2.88	2.874	0.005	11134307.59
64	6	1000000	5.73	5.73	5.73	5.72	5.73	5.728	0.003	11173184.36
128	7	100000	1.15	1.15	1.14	1.15	1.15	1.148	0.003	11149825.78
256	8	100000	2.29	2.29	2.29	2.29	2.29	2.29	0.000	11179039.30
512	9	100000	4.46	4.46	4.46	4.46	4.46	4.46	0.000	11479820.63
1024	10	10000	0.90	0.90	0.89	0.89	0.89	0.894	0.005	11454138.70
2048	11	10000	1.75	1.75	1.81	1.75	1.75	1.762	0.019	11623155.51
3072	11.58496	10000	2.61	2.62	2.62	2.62	2.62	2.618	0.003	11734148.20
4096	12	10000	3.49	3.50	3.50	3.49	3.50	3.496	0.005	11716247.14
5120	12.32193	10000	4.39	4.39	4.39	4.39	4.38	4.388	0.003	11668185.96
6144	12.58496	10000	5.23	5.23	5.23	5.23	5.23	5.23	0.000	11747609.94
7168	12.80735	10000	6.10	6.10	6.10	6.10	6.09	6.098	0.003	11754673.66
8192	13	10000	6.99	6.99	6.99	6.99	6.99	6.99	0.000	11719599.43
9216	13.16993	10000	7.85	7.85	7.85	7.85	7.85	7.85	0.000	11740127.39
10240	13.32193	10000	8.71	8.71	8.71	8.71	8.71	8.71	0.000	11756601.61
16384	14	100000	139.40	139.37	139.43	139.36	139.36	139.384	0.025	11754577.28
32768	15	100000	278.78	278.72	278.78	278.72	278.71	278.742	0.030	11755673.71
65536	16	100000	557.36	557.28	557.25	557.27	557.25	557.282	0.031	11759934.83
98304	16.58496	100000	835.75	835.81	835.69	835.76	835.70	835.742	0.038	11762481.72
131072	17	100000	1120.42	1114.50	1114.48	1114.58	1114.41	1115.678	1.897	11748192.58

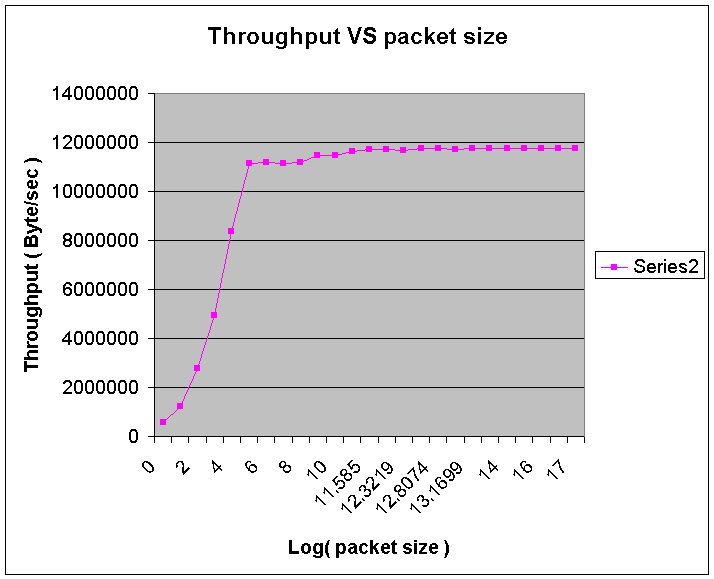

Conclusion on blast test:

When request size is very small, TCP, IP, Ethernet pads data, the throughput is low. As request size increases, the throughput increases. And the throughput converges to the full bandwidth( Currently, the maximum bandwidth we can get from experiment is: 11762481.72 Byte/Sec

Theoretical Max Bandwidth calculation:

We know 1 Mb/sec in Ethernet specification is 1000000 bit/sec, 1 KB = 1024 Byte, 1 Byte = 8 bits

Fast Ethernet 100Mb/Sec = 10^8 bits/Sec = 12500000 Bytes/sec

For overhead detail see the following:

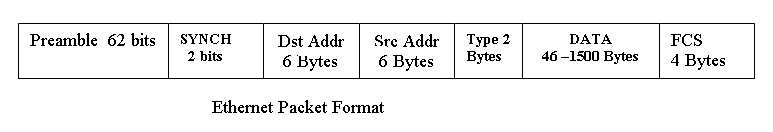

1. ETHERNET OVERHEAD

The max payload rate is:   1500/1526

The least payload rate is:   1/72	(using 45 bytes padding )

2. IP Layer Overhead

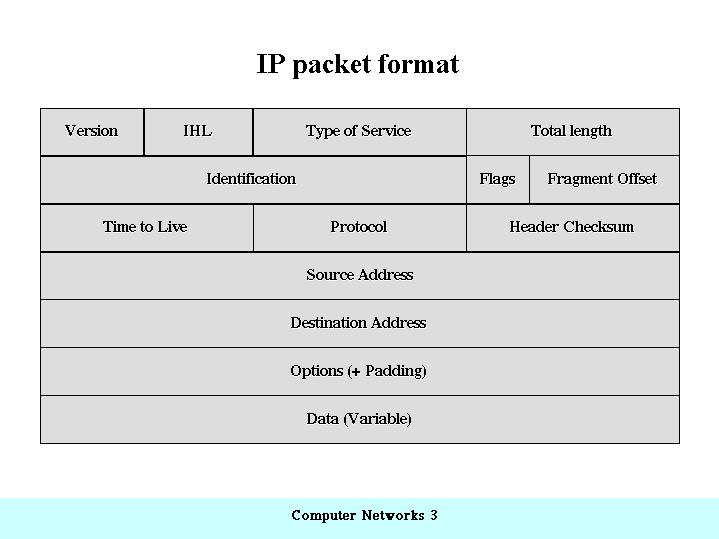

The Minimum IP header is 20 Bytes. Although the data is variable, from the 16 bit "Total length" field we know

The max IP data payload is 64Kbytes - 20Byte = 65516 bytes

3. TCP layer overhead

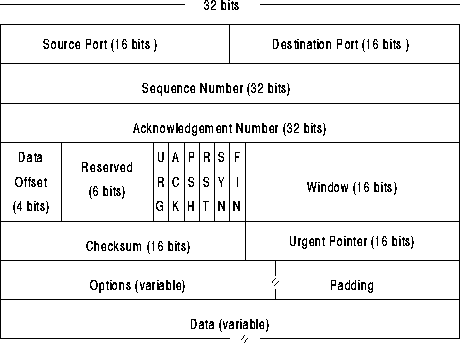

The minimum TCP header is also 20 bytes.

For the detailed Raw Experiment data, see this file
